A backwards furnace filter fits, and that is precisely the problem. It slides into the slot, the system runs, and nothing sounds obviously wrong until the utility bill climbs or the blower starts working harder than it should. We’ve pulled incorrectly installed filters from ceiling returns, attic air handlers, and vertical closet furnaces. The furnace filter airflow direction arrow pointed the wrong way in more cases than most homeowners would expect, and in most instances the fix was a five-second reinstall. The air filter installation direction follows the same logic regardless of system type, and we’ve seen firsthand what goes wrong when it is missed.
The air filter arrow direction works the same way whether your system is ceiling-mounted, horizontal in an attic, or vertical in a utility closet. Getting this one thing right from the start protects your MERV rating, your blower motor, and your energy bill.
TL;DR Quick Answers
How to install air filter which way should the arrow point?

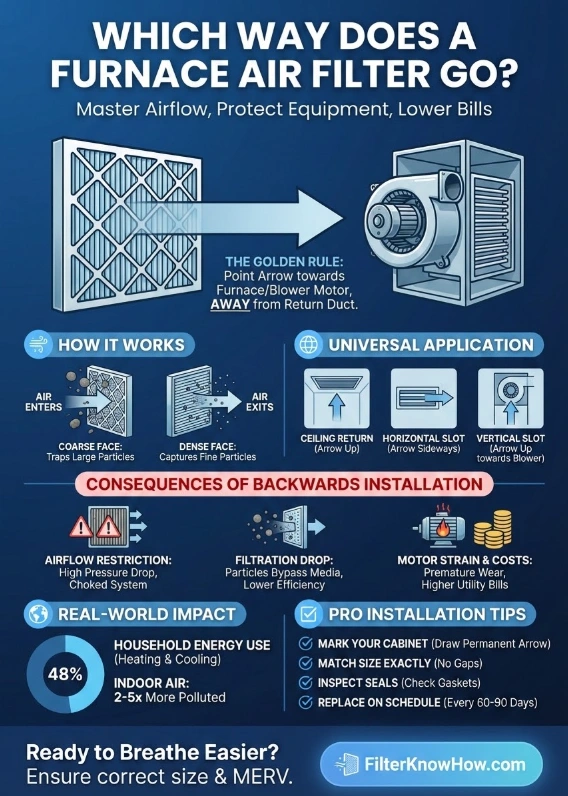

Point the arrow on your furnace filter toward the furnace or blower motor, away from the return duct. Air travels from your living space into the return duct, through the air filter, and into the furnace. The arrow marks that same path. Follow it and the installation is correct.
Air enters through the coarser, open intake face and exits through the denser filtration media toward the blower. The arrow tells you which face is which. When the arrow is faded or hard to read, run your hand across both faces. The coarser side is the intake and belongs toward the return duct. Getting this right helps your filter protect cleaner indoor air during everything from everyday dust to seasonal smoke events.
- Arrow points toward the furnace or blower motor — not toward the return duct.
- Coarser, open face = intake side. Faces the return duct.
- Denser, pleated face = output side. Faces the furnace.
- Rule applies to ceiling, horizontal, and vertical installations equally.
Top Takeaways
- The furnace filter airflow direction rule applies to every filter type and every system configuration. The arrow on the filter frame points toward the blower motor, not toward the return duct.
- Ceiling return vents, horizontal attic or basement systems, and vertical closet-mounted furnaces all follow the same rule, even though the physical slot orientation differs across all three. The arrow points in the same direction regardless of mounting position.
- Air filter backwards consequences include restricted airflow, reduced filtration performance, blower motor strain, and higher monthly energy costs. The filter fits in either direction, which is precisely why this mistake goes unnoticed for weeks or months at a stretch.
- Correct air filter installation direction is what delivers the full rated MERV performance your filter is built for. A MERV 13 filter installed backwards does not perform at MERV 13 levels.
- Correct installation direction is step one and replacing filters on schedule is step two. Knowing when your filter is fully clogged matters, because a properly installed filter that has not been changed in four months provides less protection than a fresh filter seated correctly.
Table of Contents
How Air Flows Through Your HVAC System and Why Direction Matters
Your HVAC system pulls air from your living spaces through return ducts, passes that air through the air conditioner air filter, and then pushes conditioned air back into the home through supply vents. The filter sits in the path of that return air before it reaches any mechanical components. That is the complete airflow loop, and the directional arrow on every filter reflects it exactly.
The side facing your return duct is the intake side. Air from your rooms hits that face first, passes through the filter media, and exits from the output side into the furnace or air handler where the blower motor sits. Air enters through the open, coarser face and exits through the denser filtration media into the equipment. Understanding that sequence is the foundation of correct filter installation, and it is why HVAC filter arrow which way matters beyond just fitting the filter into the slot.
In our experience, most installation errors come from not knowing which face is which. Both sides of a pleated filter can look nearly identical to the eye. The arrow is there precisely because of that, and following it is the only confirmation you need that the filter will perform at its rated MERV level.
Reading the Air Filter Arrow Direction Correctly
Every disposable furnace filter has an arrow printed on its cardboard or plastic frame. That arrow shows the direction air moves through the filter media. It is a directional installation guide, telling you which side faces the return duct opening and which side faces the furnace.
Reading it takes about three seconds. Hold the filter in front of you, find the arrow on the frame edge, and point it toward the furnace. Slide the filter into the slot in that orientation. The denser, pleated side of the media now faces the furnace, and the more open intake face sits toward the return duct.
When the arrow is printed in a hard-to-read color or faded on a generic filter, run your hand across both faces. The coarser, more open face is the intake side and belongs toward the return duct. The denser, tighter face belongs toward the blower.
What to Do When Your Filter Has No Arrow
Some generic or reusable filters omit the directional arrow entirely. In that case, locate the wire backing or reinforced mesh frame, if present. The reinforced side faces the furnace and blower. The more open, less rigid side faces incoming return air. If neither side has obvious reinforcement and the frame carries no marking at all, check the manufacturer’s packaging or installation sheet before installing. A five-minute call to an HVAC technician is worth it when the setup is genuinely unclear.
Installing Your Furnace Filter by System Type: Ceiling, Horizontal, and Vertical
The HVAC filter arrow which way question has one answer regardless of how your system is mounted or where the filter slot sits. The arrow points toward the blower motor and furnace. The three common system configurations only change the physical direction you orient the filter during installation. The rule itself does not change.
Ceiling Return Vent Filter Direction
Ceiling-mounted return vents appear most often in single-story homes and open floor plans. Air pulls upward from the room into the ductwork overhead, which means the return air duct filter direction requires the arrow to point up into that ductwork, toward the furnace.
If the arrow points downward into the room, the filter is in backwards. You can verify the airflow direction without opening the duct. With the fan running, hold a lightweight tissue near the vent. It will pull toward the ceiling, and your filter arrow should follow that same direction.
Horizontal Furnace Filter Slot Direction
Horizontal systems are common in attic, basement, and crawlspace installations, where the air handler lies on its side and the filter slides into a slot at one end. In this configuration, the air filter installation direction means the arrow points horizontally toward the air handler and blower compartment, away from the return duct connection.
The reinforced or denser side of the filter faces the blower. The open intake side faces the duct opening where unfiltered return air enters. When the slot has no directional markings inside the cabinet, locate the return duct connection and orient the filter so the arrow leads away from it.
Vertical Furnace Filter Slot Direction
Vertical systems appear most often in utility closets, garages, and dedicated mechanical rooms, where the filter slides into a slot at either the bottom or top of the furnace cabinet. Gravity plays no role in which direction the filter should face.
If the filter slot sits at the bottom of the furnace and return air enters from below, the arrow points upward toward the blower. If the slot is at the top and air enters from above, the arrow points downward into the furnace cabinet. The principle stays the same across every configuration. The arrow follows the air toward the blower.
What Happens When a Furnace Filter Is Installed Backwards
We’ve inspected systems where one backwards filter installation contributed to coil icing, blower motor stress, and measurably higher utility bills for months before the homeowner identified the filter as the source, often only during service calls. Air filter backwards consequences are predictable, cumulative, and unfortunately easy to attribute to unrelated causes.
Airflow restriction develops immediately. A filter installed against its designed flow direction creates higher pressure drop across the media. The coarser intake face is engineered to handle the initial particle load from return air. When that same side faces the blower instead of the duct, resistance increases and the total airflow volume the system can circulate drops.
Filtration performance drops alongside airflow. Particles that would have been captured in the correct flow sequence either pass through the media in the wrong direction or bypass it entirely through gaps formed by the elevated pressure differential. In our experience, a high-MERV filter installed backwards can deliver filtration closer to a MERV rating two to three levels lower than its specification.
Blower motor strain follows restricted airflow directly. Your blower motor is designed to move a specific volume of air against a known resistance. When the filter creates more resistance than the motor is rated for, the motor works harder to compensate. We’ve seen systems where repeated backwards-filter installation was a contributing factor in premature motor wear that only surfaced during an unrelated service call.
Energy costs increase as the motor compensates. A system working against restricted airflow burns more electricity per heating or cooling cycle, and over weeks and months that registers as a steadily climbing utility bill with no corresponding gain in comfort or air quality.
Furnace Filter Installation Tips From Our Testing Experience
Readers often ask us for the practical specifics that installation guides and filter packaging skip. The following come from hands-on testing and the patterns we see most consistently in real systems.Correct installation direction is step one and replacing filters on schedule is step two. A properly installed filter that has not been changed in four
- Mark the inside of your furnace cabinet near the filter access door with a permanent marker arrow pointing in the direction of airflow. Every future replacement then takes five seconds of confirmation instead of five minutes of second-guessing.
- Match your replacement filter size exactly to the filter you remove. A filter that does not seat snugly allows unfiltered air to bypass the media around the frame edges. Correct installation direction means nothing if a gap exists around the perimeter.
- Check your system’s rated airflow capacity before upgrading to a higher MERV rating. In our experience, residential systems in the 1,500 to 2,500 square foot range often perform better with MERV 11 than MERV 13 if the blower is not rated for higher media density.
- Inspect the filter slot seal or gasket at every change. A warped or missing seal creates a bypass gap that no arrow-direction correction will address.
- Set a calendar reminder at 60 to 90 days for standard households. Pet households and allergy households typically need changes at 30 to 45 days. A correctly installed filter that has exceeded its replacement interval still restricts airflow and reduces the quality of your indoor air.
“After inspecting systems where a backwards filter quietly stressed blower motors for months before anyone noticed, we’re convinced that furnace filter installation direction is the most underestimated maintenance variable in residential HVAC. A MERV 13 filter seated backwards performs as something lower. The arrow on the frame is a performance specification, and getting it right from the first moment costs nothing.”
Seven Essential Resources on Filter Installation and Indoor Air Quality
The sources below represent authoritative guidance on filter performance, indoor air quality standards, and HVAC maintenance. We reference each of these when helping readers make decisions about filter selection and installation.
1. EPA Indoor Air Quality Resource Hub: The Foundation for Understanding Filter Importance
The U.S. Environmental Protection Agency’s indoor air quality hub covers how airborne particles affect residential health and which filtration practices support cleaner indoor environments. We reference this resource more than any other when readers ask us about the health stakes behind correct filter installation and regular maintenance.
Source: Indoor Air Quality (IAQ) | US EPA
2. ASHRAE Filtration and Disinfection Standards: The Science Behind Every MERV Rating
ASHRAE establishes the testing protocols that define MERV ratings across all filter types, giving homeowners and HVAC professionals a standardized framework for comparing filter performance. Understanding the standard behind the rating clarifies why correct air filter installation direction is the prerequisite to achieving the MERV performance you are paying for.
Source: Filtration / Disinfection
3. AAFA Indoor Allergens Guide: What Your Filter Is Working to Capture
The Asthma and Allergy Foundation of America documents the specific indoor allergens that HVAC filtration helps address, including dust mites, pet dander, and mold spores. This resource helps homeowners connect correct filter installation direction to tangible health outcomes, particularly for allergy and asthma households where filter performance matters most.
Source: AAFA Indoor Allergens Guide
4. U.S. Department of Energy Home Heating Systems Guide: Where Filters Fit in the Mechanical Picture
The Department of Energy’s home heating systems resource explains the mechanical relationship between air handlers, blower motors, and filter placement within a residential HVAC system. Readers who want to understand why furnace filter airflow direction matters at the equipment level will find this guide useful.
Source: Home Heating Systems | Department of Energy
5. ACAAI Guidance for Allergy and Asthma Patients: A Medical Perspective on Filter Performance
The American College of Allergy, Asthma and Immunology provides medical guidance on air filter selection and performance for allergy and asthma patients. We direct allergy-focused readers to this resource as the most credible medical viewpoint on how filter performance, including correct installation direction, translates to symptom management outcomes.
Source: ACAAI
6. NAFA: Industry Standards From the National Air Filtration Association
NAFA is the trade organization for air filtration professionals and publishes educational material on filter selection, installation best practices, and maintenance intervals that reflect industry standards. Their resources provide the filtration industry perspective that complements the practical guidance we provide at FilterKnowHow.com.
Source: National Air Filtration Association
7. CDC/NIOSH Indoor Environmental Quality: Public Health Standards for Indoor Air
The CDC’s National Institute for Occupational Safety and Health publishes indoor environmental quality guidance covering ventilation and filtration in the context of reducing airborne health risks. This resource provides the public health perspective on why proper furnace filter installation direction affects more than equipment performance alone.
Source: CDC
Three Statistics That Put Filter Installation Direction in Context
The numbers below match what we observe consistently in reader interactions and real system inspections. Correct filter installation is a direct variable in home health, equipment longevity, and household energy costs.
Stat 1: Indoor Air Is Often Far More Polluted Than the Air Outside
The EPA has documented that concentrations of some airborne pollutants inside residential spaces run 2 to 5 times higher than typical outdoor concentrations. In our experience helping readers troubleshoot persistent air quality complaints, a misinstalled or overdue-for-replacement filter is one of the fastest ways to push indoor pollution toward that upper range. A filter seated correctly removes particles before they recirculate. Reverse the orientation and that capture sequence breaks down.
Source: Indoor Air Quality | US EPA
Stat 2: Heating and Cooling Account for Nearly Half of Household Energy Use
Heating and cooling account for roughly 48% of energy consumption in a typical U.S. home, according to ENERGY STAR data. Our testing shows that airflow restriction from a backwards or overdue-for-replacement filter forces the blower motor to work harder, which directly contributes to that energy draw. Correcting filter installation direction is one of the lowest-cost ways to protect both indoor air quality and household energy efficiency at the same time.
Source: ENERGY STAR
Stat 3: More Than 100 Million Americans Experience Allergy Symptoms Each Year
More than 100 million people in the United States deal with allergy symptoms each year, according to AAFA data. Readers frequently report to us that their symptoms improved noticeably after correcting filter installation direction and selecting a compatible MERV rating. For the households where those 100 million people live, knowing how to install furnace filter correctly is a health consideration, not a nice-to-have maintenance preference.
Source: Allergy Facts and Figures
Final Thoughts: Furnace Filter Direction Is a Five-Second Fix With Long-Term Impact
Every filter inspection we’ve done points to the same conclusion. Correct furnace filter airflow direction is the prerequisite for everything else your filter is supposed to accomplish. The MERV rating, the replacement schedule, the media quality all depend on the arrow pointing the right way from the first moment the filter enters its slot.
What our testing and thousands of reader interactions confirm is that this mistake is both common and invisible. A backwards filter fits in the slot, the system runs, and the signs of reduced performance are easy to attribute to seasonal variation, system age, or something else entirely. That is what makes the arrow worth checking on every installation.
Our honest take is to mark the inside of your furnace cabinet with a permanent direction arrow before your next filter change. Check the replacement interval while you’re at it. And if you are not certain your current filter is seated correctly, pull it and reinstall it with the arrow deliberately facing toward the blower.
Three steps that matter most:
- Point the arrow toward the furnace and blower motor on every installation.
- Seat the filter snugly with no gaps around the frame edges. Direction means nothing if unfiltered air bypasses the media.
- Replace on schedule. A correctly installed filter that has exceeded its service interval still restricts airflow and reduces the quality of your indoor air.
Get these three right consistently, and your HVAC system delivers the airflow, filtration, and efficiency it was designed to provide.
Frequently Asked Questions About Furnace Filter Airflow Direction
Q: Which way does the arrow on a furnace filter point?
A: The arrow points toward the furnace or blower motor, away from the return duct. Air enters the filter from the return side and exits through the media into the furnace. Match the arrow to that airflow path and the installation is correct.
Q: What happens if I install my furnace filter backwards?
A: Air filter backwards consequences include restricted airflow, reduced filtration performance, increased blower motor strain, and higher energy costs. A backwards filter fits in the slot and the system continues to run, which is why this problem often goes undetected for weeks or months before the signs become obvious.
Q: How do I know which side of the filter faces the furnace?
A: Follow the arrow printed on the filter frame. The side the arrow points toward faces the furnace or air handler. If the arrow is hard to read, the denser or more rigid side of the media typically faces the blower. The coarser, more open side faces the return duct.
Q: Does it matter which way I install a furnace filter?
A: In our experience, it matters significantly. Correct air filter installation direction is what enables the filter to perform at its rated MERV level. A filter installed backwards can deliver meaningfully lower filtration efficiency from the first day of use, and the gap between rated and actual performance widens over time.
Q: What is the correct direction for a ceiling return vent filter?
A: For ceiling return vents, the return air duct filter direction means the arrow should point up into the ductwork, away from the room below. Air pulls upward into the duct, and the arrow follows that direction. If the arrow points toward the room, the filter is in backwards.
Q: Can a backwards filter damage my HVAC system?
A: Over time, a backwards filter can contribute to blower motor wear from increased airflow restriction and the added strain the motor carries as a result. We’ve inspected systems where a persistent backwards-filter installation was a contributing factor in premature motor service calls. The risk compounds with every week the filter stays in the wrong orientation.
Q: What MERV rating works best when the filter is installed correctly?
A: For most residential systems, MERV 11 to MERV 13 provides the best balance of filtration and airflow when installed correctly. In our experience, MERV 13 installed correctly outperforms MERV 16 installed backwards in every measurable dimension. Verify that your system is rated for the media density you select before upgrading.
Q: How do I find the airflow arrow when it is printed in a hard-to-read color?
A: Run your hand across both faces of the filter. The coarser, more open face is the intake side. That side faces the return duct. The arrow should appear on the frame edge that aligns with that same airflow path. If the frame is entirely unmarked, check the manufacturer’s packaging or product sheet for directional installation guidance.
Q: How often should I replace a correctly installed furnace filter?
A: Most households benefit from replacement every 60 to 90 days as a baseline starting point. Pet households and allergy households typically need changes every 30 to 45 days. A correctly installed filter that has exceeded its service interval still restricts airflow and reduces indoor air quality regardless of how precisely it was seated during installation.
Q: Does filter direction change based on the type of filter media?
A: The directional arrow applies to all disposable filter types including fiberglass, pleated, and electrostatic media. Some washable or reusable filters may allow bidirectional installation, but following the manufacturer’s arrow or directional marking is the reliable standard for consistent performance across all filter types.
